A team of physicists in the Netherlands has achieved a breakthrough in additive manufacturing: 3D-printing structures entirely from ice. This isn’t just a festive demonstration—the technique leverages fundamental physics principles with potentially far-reaching applications, from creating internal channels in materials to enabling on-site construction in environments like Mars.
The Science Behind Frozen Fabrication
The process hinges on evaporative cooling, a phenomenon as common as sweat evaporating from skin and as sophisticated as laser-cooled atoms. By spraying water into a high-vacuum chamber, the team exploited how quickly liquid evaporates when air pressure drops. As water molecules turn to vapor, they carry away heat, rapidly freezing the remaining liquid jet.
The key lies in a 16-micrometer nozzle that maximizes surface area for efficient cooling. This allows water to drop tens of degrees Fahrenheit in under a second, freezing instantly upon contact with a surface. This is a major step forward: existing ice-printing methods need costly additives or cryogenic infrastructure (like liquid nitrogen).
How the 3D Printer Works
The researchers integrated their water jet into a standard 3D printer housed inside the vacuum chamber. The printer’s motion control system directs the jet with precision, just as it would handle resin. A crucial element is the 0.5-second delay between droplet deposition and freezing. This window allows multiple droplets to merge before solidifying, held together by surface tension.

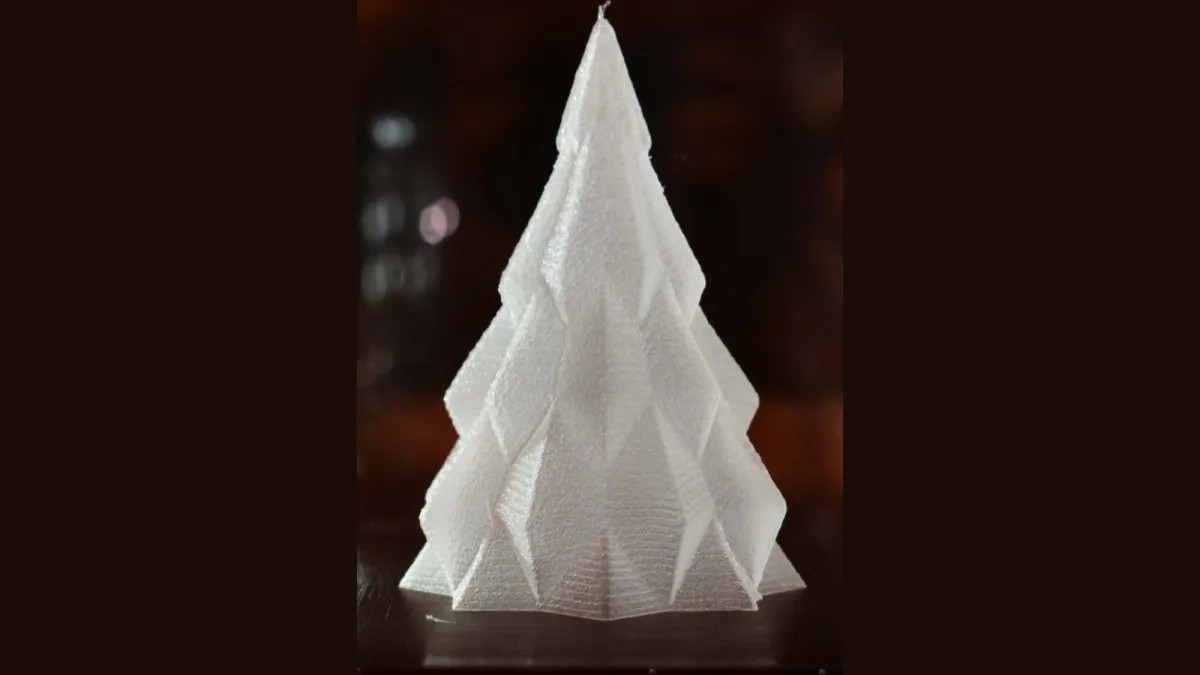

Once the print is complete, the vacuum is released, and the ice melts cleanly away, leaving no residue. The proof-of-concept: a 3.14-inch Christmas tree, but the implications are much larger.
Beyond Decoration: Real-World Applications
The potential uses of this technique are significant:
- Hollow Structures: Ice can be printed as a sacrificial layer within resin or polymer materials. After printing, the ice is melted away, creating clean, intricate channels.
- Tissue Engineering: The method could be adapted for surgical applications, potentially simplifying the creation of complex biological scaffolds.
- Space Exploration: Perhaps most remarkably, the low-pressure conditions required for printing are achievable on Mars. Astronauts could theoretically 3D-print structures from local ice deposits without bulky cryogenic tools.
“This is not a Christmas miracle—it’s physics,” the researchers wrote.
The ability to print with pure ice, without additives, simplifies the process and eliminates waste. The method’s versatility suggests that evaporative cooling-based 3D printing could become a powerful tool across multiple industries.
